5.6m Aluminium Hull RIB Boat
Elevate your water experience with the EXCEL Vantage 560 opening the door to power, comfort and adventure. The EXCEL Vantage 560 is constructed with an aluminium transom arch perfect for additional lighting and electronics, fulfilling all of your needs. Much like it’s predecessor, the EXCEL Vantage 560 is also built with a spacious sundeck for soaking up the sunlight as well as a sturdy swim platform for jumping in.
View Current Stock5.60m Overall Length
3.96m Inside Length
2.50m Overall Width
1.31m Inside Width
0.52m Tube Diameter
7 Person Seat Capacity
12 Person CA Rating
1010kg Loading Capacity
115hp Maximum Motor Power (Remote)
665kg Boat Weight (Hull Only)
6 Chamber
0.25 Bar Max Air Pressure - Tubes
Orca HYPALON Tube Fabric
Aluminium Hull
Make the most of summer days with the EXCEL Vantage 560 RIB Boat and prepare to be dazzled by the luxury included as standard. Crafted to offer you a stylish and modern boating experience that will encourage you to stay out longer in comfort.
Excellence as Standard
The EXCEL Vantage 560 RIB Boat is the reference of luxury family boating. Tune it to fit your style with your choice of upholstery, marine electronics and propulsion.
Standard Features
• Rear Bench Seat, Console Front Seat and Bow Seat
• Sun Deck
• High Console with Helm Carbon Trim
• Suzuki Digital Engine Display
• Transom Frame with Navigation Lights
• Marine-grade Aluminium Hull
• Lifting & Towing Points
• Integrated 100L Fuel Tank
• Custom Non-Skid EVA Flooring
• 52cm Diameter PVC Tubes
• Comfortable Passenger Tube Handles
• Hard Moulded Carry handles
• Inflate/Deflate & Over Pressure Valves
• Heavy Duty Rubbing Strake
• Self Draining Deck
• 49L p/m Automatic Bilge Pump
• Self-Bailer
Accessories & Electronics
Add your finishing touches
• Overall Cover
• Console Cover
• Battery Powered Inflation Pump
• External Folding Ladder
• Carry-on 23L Fuel Tank
• Turbo Swing Ski Tow Frame
• Marine Upholstery Upgrade
• 12v Electric Inflation Pump
• VHF Radio with Antennae
• FUSION Sound System inc. Bluetooth & Twin Speakers
• GARMIN Echomap UHD2 9” Chartplotter/Sounder
• Secondary Screen Upgrade
• GARMIN Digital Switching
• GARMIN GT20-TM Transom Mount & Pin Transducer
The EXCEL Vantage 560 Rigid Inflatable Boat redefines elegance on the water, seamlessly blending sleek design with unparalleled functionality. Its stylish presence is a testament to the marine experience, making a statement wherever it goes.
Unmatched Durability
Crafted from high-grade, marine-quality aluminium, the EXCEL Vantage 560 is built to withstand the toughest conditions. Corrosion-resistant and virtually maintenance-free, this boat guarantees longevity for years of adventures. Aluminium boats are light, recyclable and durable which offers ecological benefits over other constructions.
Choose a standard hull colour below.
Midnight Black
Executive Grey
Pearl White
52cm Diameter Hypalon Tubes
As standard, you have ORCA Hypalon tubing on your EXCEL Vantage 560 – the reference for luxury RIBs, paired with an extensive 5 year warranty.
Long-lasting EVA floor panels, designed to be non-slip, skid-resistant and handle tough climates. Choose from a variety of colour schemes to kit out your EXCEL Vantage 560.

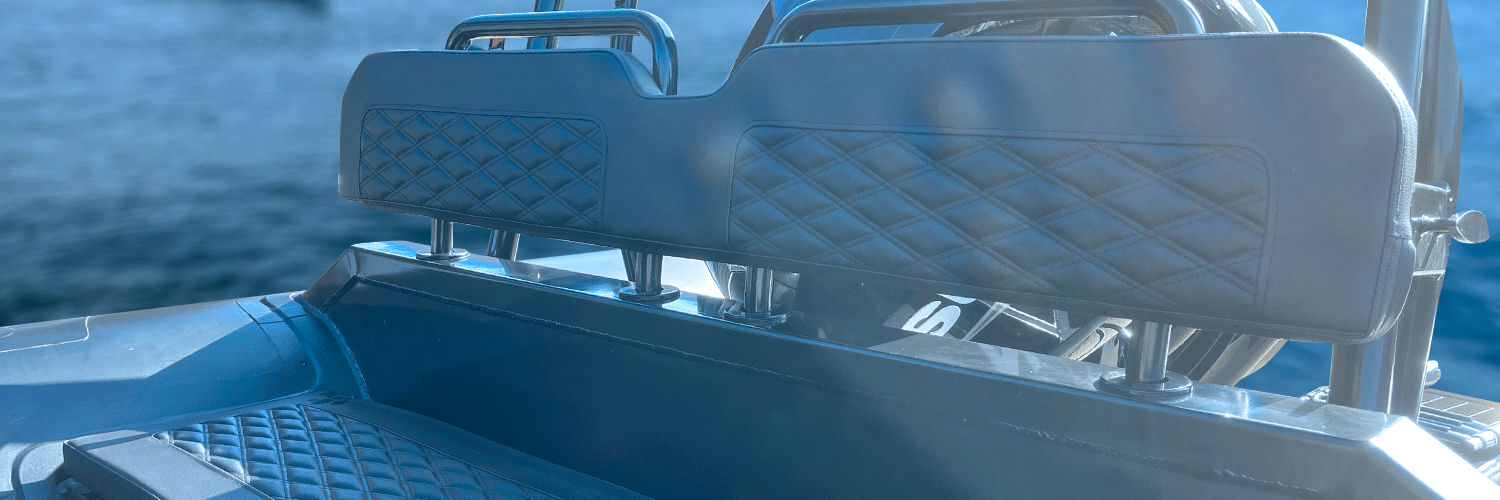

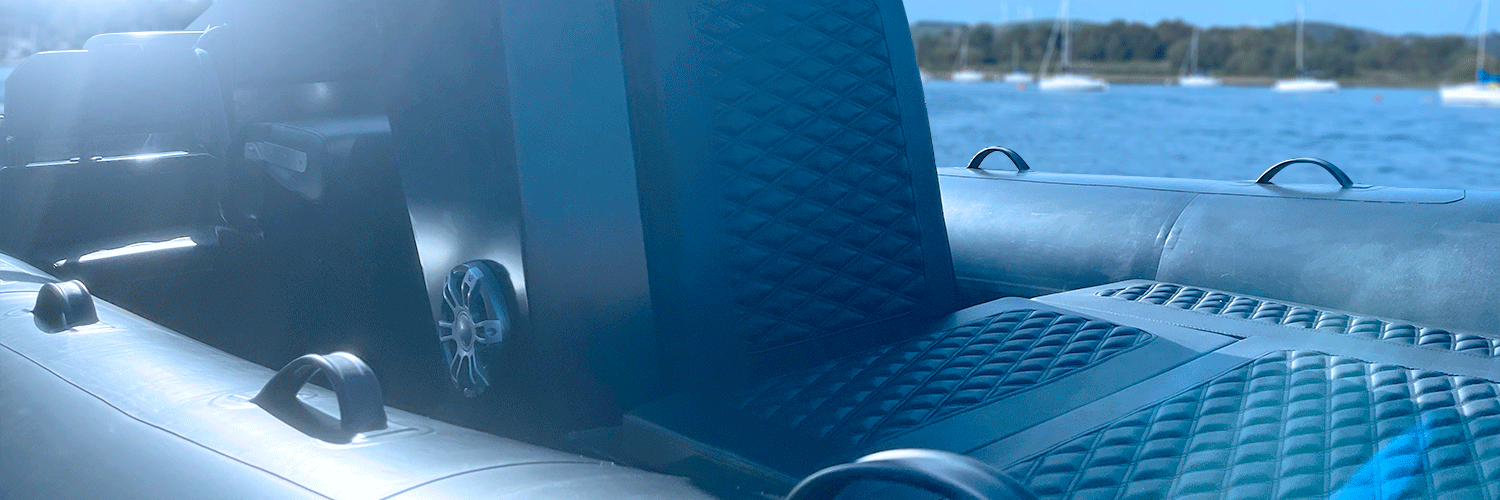

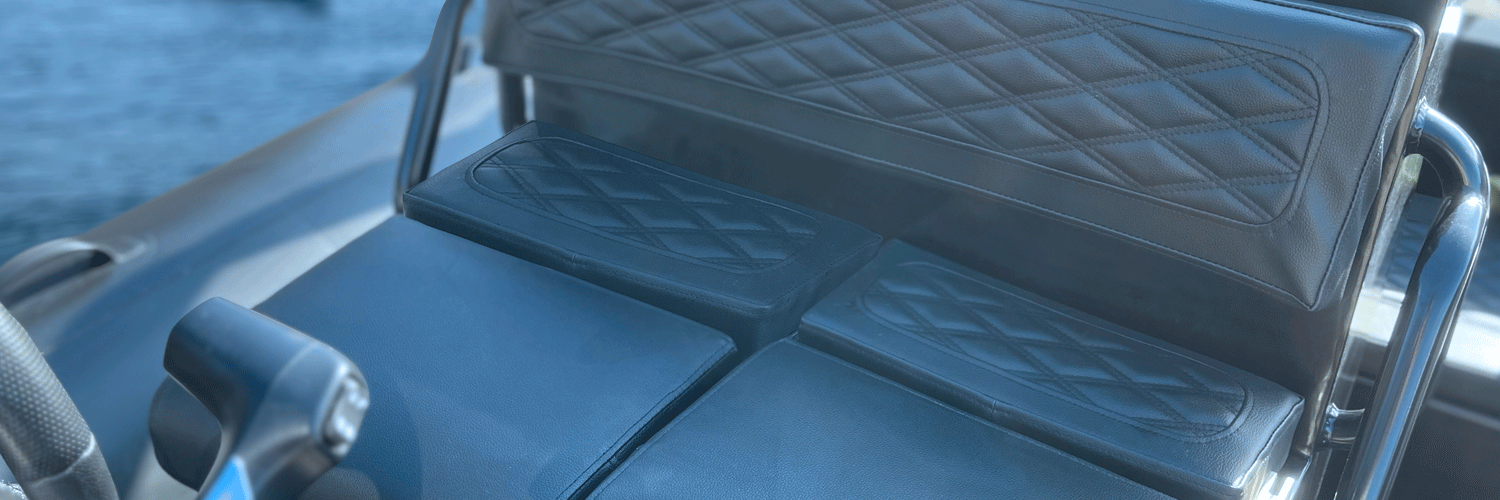

The EXCEL Vantage 560 seating is more than just sporty and stylish, beneath it the Vantage 560 has a huge amount of storage. Whether you are storing a picnic for that secret cove, inflatable water toys or a change of clothes there is ample storage in the Vantage RIB Boat
Made to match your RIB's hull and console, these are crafted using lightweight aluminium and a sleek powder-coated finish.
The removable sundeck at the bow complements the overall design, providing additional versatility and enhancing your on-water experience.

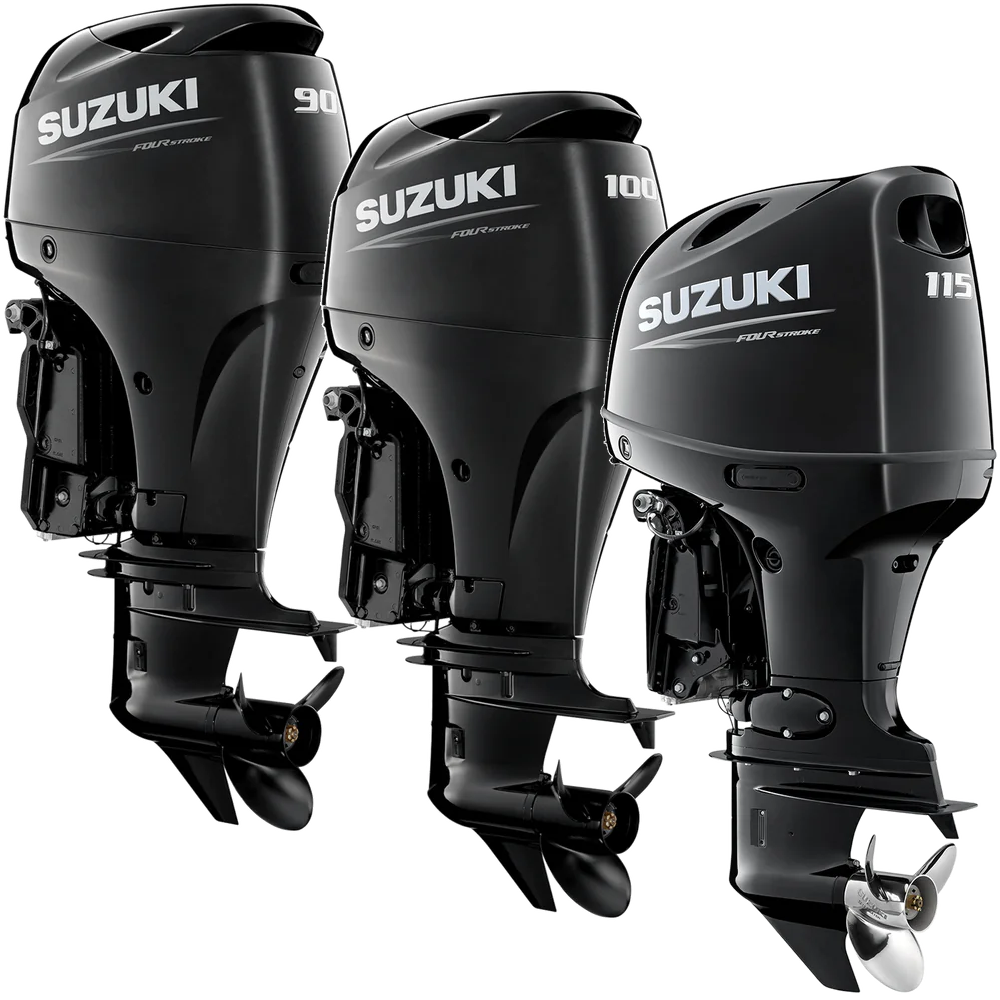

Powerful Performance
Control your propulsion with access to wide range of Outboard engines, paired with expert knowledge, servicing solutions and checkups.
Electric Starting System
DOHC 16 Valve Engine Type
4 No. Of Cylinders
1502cc Piston Displacement
66.2KW Maximum Output
5,300 - 6,300 Full Throttle Operating Range
Remote Steering
4L Oil Pan Capacity
25L Fuel Tank Capacity
156 - 160kg Weight
Electric Starting System
DOHC 16 Valve Engine Type
Multi-Point Sequential Electronic Fuel Injection Fuel Delivery System
4 No. Of Cylinders
1502cc Piston Displacement
73.6KW Maximum Output
5,700 - 6,300 Full Throttle Operating Range
Remote Steering
4L Oil Pan Capacity
25L Fuel Tank Capacity
157 - 161kg Weight
Electric Starting System
DOHC 16 Valve Engine Type
Multi-Point Sequential Electronic Fuel Injection Fuel Delivery System
4 No. Of Cylinders
2045cc Piston Displacement
84.6KW Maximum Output
5,500 - 6,000 Full Throttle Operating Range
Remote Steering
5.5L Oil Pan Capacity
187 - 189kg Weight
Uncompromised Capabilities

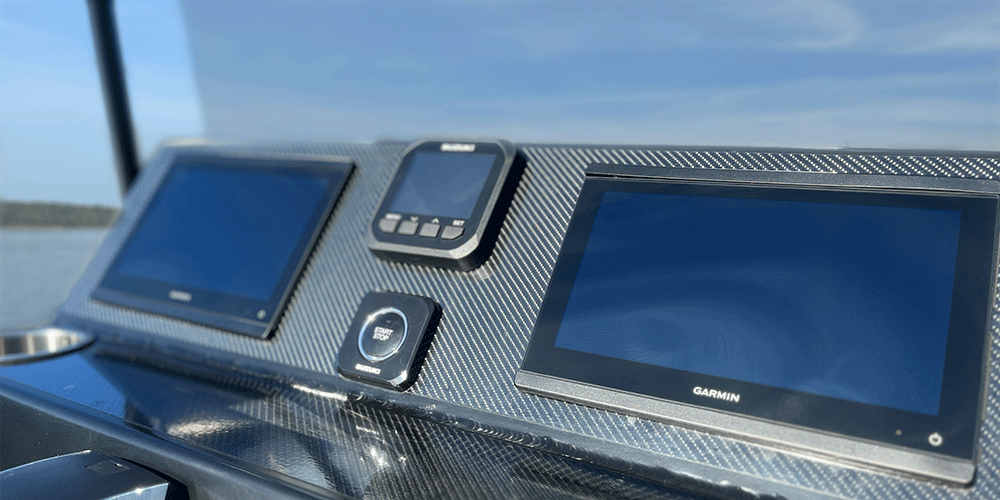

Elevate your boating adventure by exploring our extensive range of electronic packages tailored for the EXCEL Vantage 560 RIB. Discover state-of-the-art Chartplotters and cutting-edge VHF Radios to enhance your marine experience—all the essential equipment is here for you.
Package 1
• GARMIN Echomap UHD Touch 7" Chart Plotter

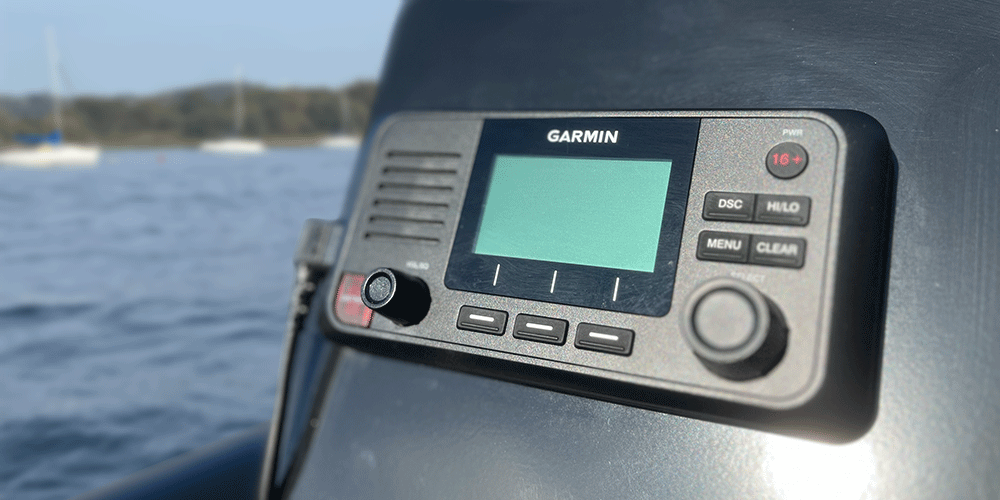

• GARMIN VHF 115i Marine Radio
• Fusion SG-FL653SPG Sports Speakers
• Backlit Rocker Switch Panel
• Suzuki Digital Gauge
Package 2
• GARMIN GPSMAP 9" Chartplotter/Sounder
• GARMIN Navionics+ U.K., Ireland & Holland NSEU628L
• Secondary Screen Upgrade
• GARMIN Digital Switching
• GARMIN VHF 115i Marine Radio
• GARMIN GT20 - TM Transom Mount 8 Pin Transducer
• Fusion Apollo Series MS-WB675 Premium Hideaway
• Fusion SG-FL653SPG LED Sports Speakers
• All connected via NMEA2000 for complete connectivity and housed inside a sealed control panel for easy access.
Marine Upholstery
Upgrade with our industry-leading Marine upholstery and design services when selecting your cushion sets on your EXCEL Vantage 520. Finished and treated with an intensive range of protection. Create a 2-tone combination with contrast stitching or keep it simple with one bold colour.
Want to find out more?
Fill out the form below and one of our specialist advisors will get in touch.
You can also call us directly on 0121 32 32 333
